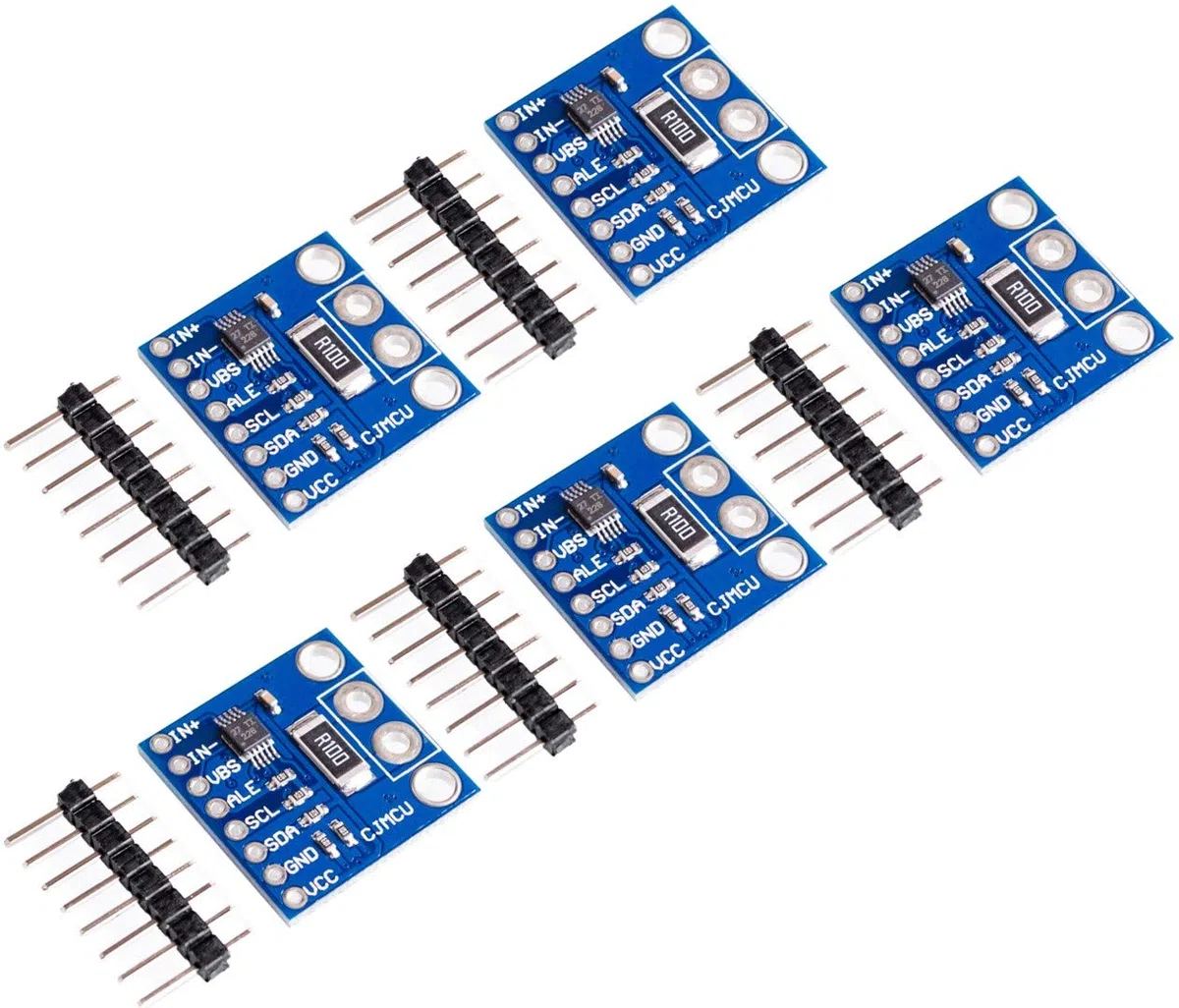

5pcs INA226 IIC I2C Interface Bi-Directional Current/Power Monitoring Sensor

- 【INA226】The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times, and averaging, combined with aninternal multiplier, enable direct readouts of current inamperes and power in watts.
- 【Compatible】The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330μA of supply current. The device is specified over the operating temperature range between –40°C and125°C and features up to 16 programmable addresses on the I2C-compatible interface.
- 【Design compact】Senses Bus Voltages From 0 V to 36 V; High-Side or Low-Side Sensing; Reports Current, Voltage, and Power.Configurable Averaging Options-16 Programmable Addresses; Operates from 2.7-V to 5.5-V Power Supply; 10-Pin, DGS (VSSOP) Package.
- 【High performance】High Accuracy:– 0.1% Gain Error (Max);– 10 μV Offset (Max);
- 【Entrega rápida】Envío desde España con llegada rápida a toda la UE
